TS6121A STS6121A LAN Transformer 10/100 BASE For Networking Hubs

Name: TS6121A STS6121A LAN Transformer 10100 BASE For Networking Hubs
Brand: LINK-PP
Price: 0.06 USD

Quality TS6121A STS6121A LAN Transformer 10/100 BASE For Networking Hubs for sale

Place of Origin : Guangdong,China

Brand Name : LINK-PP

Certification : UL,RoHS,Reach,ISO

Model Number : TS6121A

MOQ : 400/2000/10K/25K

Price : $0.06-$1.2

Packaging Details : T&R

Delivery Time : 1-3days

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Part Number : STS6121A / TS6121A

Series : Ethernet Transformer

Magnetics : 10/100 Base-T

Turn Ratio : 1CT : 1CT

Size / Dimension : 12.70mm X 9.40mm X 6.22mm

Datasheet : Contact us

Contact Now

TS6121A 10/100 BASE-T LAN Transformer Overview

Description: 10/100 BASE Pulse Transformer, SMD small-size package (16-pin SMD)

Key Features

Low leakage inductance and low winding capacitance — ensuring fast rise time for Ethernet pulses.
High isolation voltage — meets international LAN safety requirements.
Single-port (or half-port) SMD design — offers maximum PCB layout flexibility.
Package: 16-pin SMD — compliant with the requirements of IEEE 802.3.
Compatible with popular Ethernet PHY/transceiver vendors (such as Intel, TDK, QSI, ICS).
Storage temperature range: –40 °C to +125 °C.

Electrical Specifications (at 25 °C)

Parameter	Conditions / Frequency	Value
OCL (µH Min)	100 kHz, 0.2 V, with 8 mA DC Bias	350
Turns Ratio	TX = 1CT : 1CT	—
Insertion Loss (dB Max)	0.5–100 MHz	–1.1
Return Loss (dB Min)	0.5–30 MHz	–18
Return Loss (dB Min)	30.1–60 MHz	–18 + 20 * log(f/30)
Return Loss (dB Min)	60.1–80 MHz	–12
Cross Talk (dB Min)	0.5–40 MHz	–35
Cross Talk (dB Min)	40.1–100 MHz	–33 + 20 * log(f/50)
CMRR (dB)	0.5–100 MHz	–30
HI‑POT (Vrms)	—	1500

10/100 Base-T LAN Magnetic STS6121A Datasheet

TS6121A Datasheet-Schematic

TS6121A STS6121A LAN Transformer 10/100 BASE For Networking Hubs

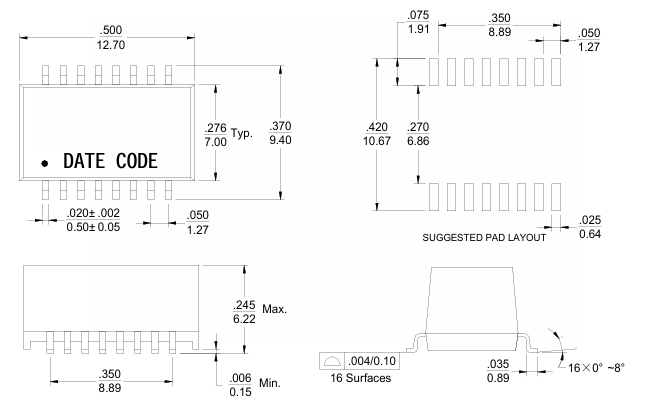

TS6121A Datasheet-Mechanical

TS6121A STS6121A LAN Transformer 10/100 BASE For Networking Hubs

Contact Us for More Magnetics Modules

LAN Transformers Part Number
16ST8515-1 LF	G4P209RNY LF	24SH10410 HF	NS0068D LF
TS6121A	G4P409N LF	24SH10416 HF	TS8121A LF
TL1142B-A LF	TS6121A	24SH10416 HF	NS0014Y LF
TL8515A LF	G4P409N-A LF	GSL5009 LF	NS0015 LF
TL8515C LF	G4P409RNY LF	TS6121A	NS14 LF
TN1142B LF	G4PS106N LF	G2P109N-C LF	NS14-1 LF
TN1284 LF	TS6121A	G2P109NY LF	NS14Z LF
TN8515 LF	G4PS109N LF	G2P129N LF	NS14Z LF
TN8515A LF	G4PS109RN LF	G2P129N LF	TS8121A LF
TN8515B LF	GH5209 LF	G2PM106N LF	NS14BZ LF
TN8515C LF	GH5409 LF	G2PM109N LF	NS14Y LF
TS13H HF	GH5609S LF	G2PM109N LF	TS8121A LF
TS21AY HF	GH5209-1 LF	G2PM109RNY LF	14ST9012P LF
TS800-06 HF	GH5210 LF	G2PM109N1 LF	VP6019 HF
TS21C HF	GH5409-1 LF	G2PM109NH LF	VP6018RZM HF
TS8121A HF	GH5409M LF	TS8121A LF	VP6015M LF
TS8121AX HF	GH5609S-1 LF	G2PM109NM LF	VP6014RZ HF
